More Volcano News

image by Brian H. Day, NASA Ames Research Center

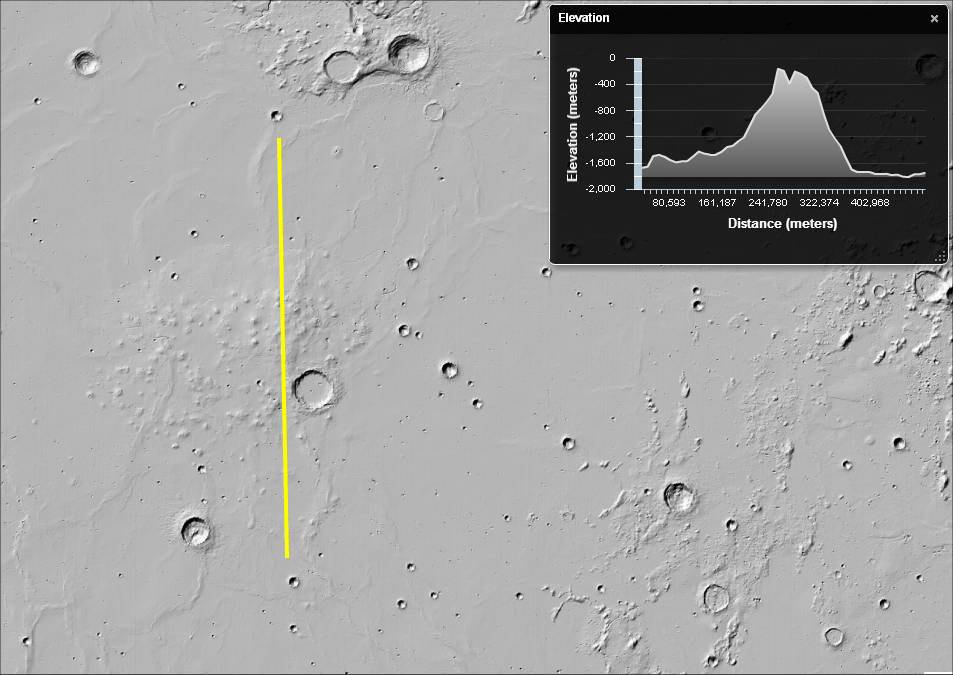

For years, professional and amateur observers of the Moon have been fascinated by the numerous, small lunar domes like those featured in the Marius Hills. Such observations inevitably led to the question, "Why are there no large volcanoes on the Moon?" Features like Mons Rumker and even the Gardner Megadome, while standouts among lunar volcanoes, are unspectacular compared to many larger volcanic edifices on Earth and Mars. But in 2011, Spudis et al pointed out the existence of what appear to be large shield volcanoes or mega-megadomes on the Moon associated, in many cases, with known clusters of smaller volcanic landforms. The extremely low slopes of these shields can make them very difficult to detect. But new tools, such as NASA’s Lunar Mapping and Modeling Portal can reveal these subtle monsters. The mega-megadome upon which the Marius Hills sit is an excellent case in point. In the LMMP view featuring the LOLA DEM Hillshade layer, the Marius Hills themselves are quite evident, but the underlying shield certainly does not stand out. But in an elevation plot of the laser altimetry data along a transect from south to north, the Marius Shield becomes quite evident. Though the high vertical exaggeration makes it look like more of a cone than a shield in this plot, the Marius Shield with its cones on top of it does bring to mind a flatter version of the great shield of Mauna Kea here on Earth adorned with its multiple small cones clustered around its summit.

Brian H. Day
LADEE Mission E/PO Lead
